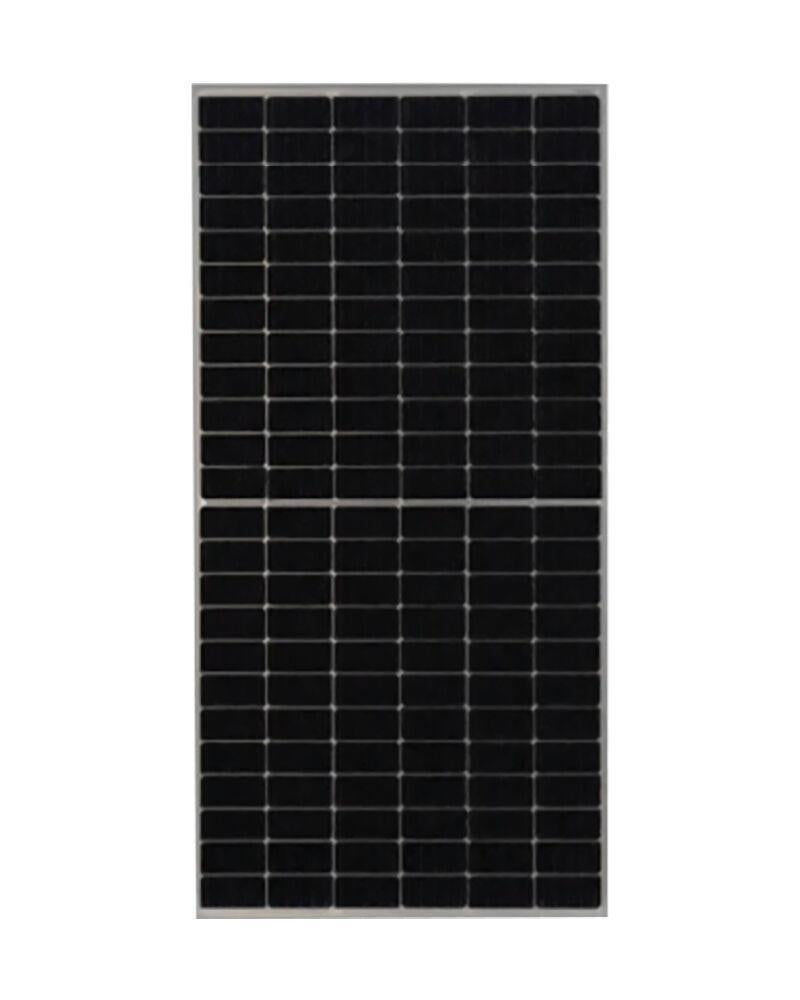

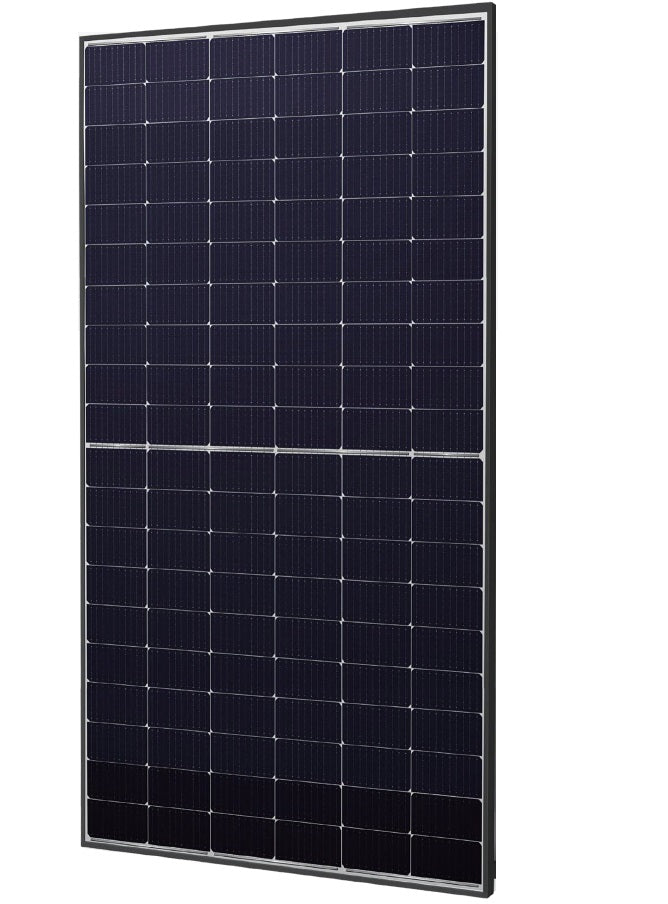

500 Watt Solar Panel

Technical Data Sheet 500 W PlusEnergy

• Standard Test Conditions (STC)
• Maximum power (Pmax): 500 W
• Power tolerance: (0, +5 W)
• Module efficiency: 23,10%
• Voltage at Pmax (Vmpp): 36,87 V
• Current at Pmax (Impp): 13,56 A
• Open circuit voltage (Voc): 44,22V
• Short-circuit current (Isc): 14,04 A
• Nominal Operating Cell Temperature (NOCT)
• Maximum power (Pmax): 376 W
• Voltage at Pmax (Vmpp): 34,44 V
• Current at Pmax (Impp): 10,95 A
• Open circuit voltage (Voc): 41,84V
• Short-circuit current (Isc): 11,31 A
• OPERATING CONDITIONS
• Maximum system voltage: 1500 VDC
• Maximum series fuse rating*: 25 A
• Operating temperature range: -40°C to 85°C
• Maximum static load, frontal (e.g. snow): 5400 Pa
• Maximum static load, rear (e.g. wind): 2400 Pa
• Maximum hail impact (diameter / speed): 25 mm / 23 m·s⁻¹
